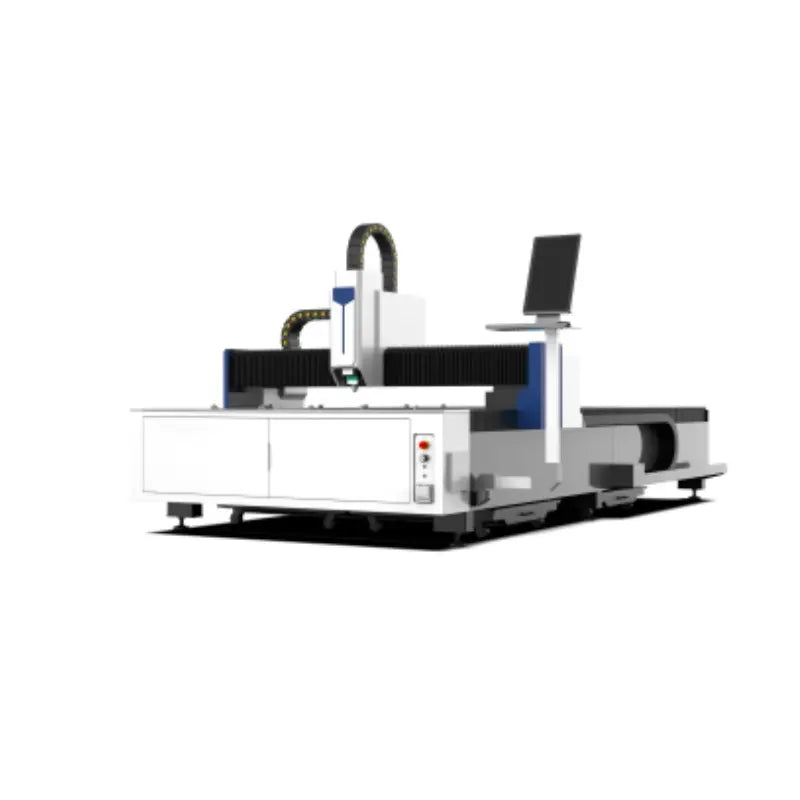

ML-S3015 Economical Metal Fiber Laser Cutting Machine

ML-S3015 Economical Metal Fiber Laser Cutting Machine

£0.00 GBP
£0.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Manxlaser ML-S3015 is an economical fiber laser cutting solution designed to handle a wide variety of metal sheets at an affordable price point. Despite its cost-effectiveness, it does not compromise on quality. This 3015 model integrates premium components including a Maxphotonics laser source, the professional Cypcut CNC system, an OSPRI laser head, Yaskawa servo motors, Schneider electronics, and SMC pneumatic components.

With a working area of 3000mm x 1500mm, the ML-S3015 ensures high-quality cutting effects for diverse projects. We can also customize machine specifications based on your specific production needs.

Key Features & Character

  • Servo Dual-Drive Gantry Structure: Features a bridge gantry design with rack rail drive and a centralized lubrication device, making maintenance easy and operation smooth.

  • Robust & Stable Construction: The reinforced welding machine bed undergoes high-temperature tempering and vibration treatment to eliminate stress. Machine tool deformation is strictly controlled within ± 0.02mm.

  • User-Friendly Operation: Powered by the Cypcut CNC system—trusted by over 23,000 users worldwide. It features automatic laser power adjustment to ensure consistent cutting quality.

  • Modern Industrial Design: Designed to meet European and American export standards with a sleek, industrial aesthetic suitable for the global market.

  • High-Quality Cutting: Equipped with a high-precision, anti-collision professional laser head to ensure the best edge results for your workpieces.

  • Efficiency: Standardized specifically for metal sheet cutting to save both time and material costs.

  • Reliable Laser Source: Uses the Maxphotonics fiber laser source (other brands optional) for stable power and guaranteed performance.

Machine Configuration

Component Specification
Model ML-S Series
Working Area 3000mm * 1500mm
Laser Source 1000W Maxphotonics (Upgradable)
CNC Cutting System Cypcut 1000 Operating System
Laser Head OSPRI (Manual Focus / Anti-collision)
Machine Bed Manxlaser Heavy-Duty Bed
X/Y Axis Gear Rack Manxlaser Precision Rack
Linear Guide ROUST
Motor Drive Japan Yaskawa Servo (X: 750W / Y: 750W / Z: 400W)
Electronic Components France Schneider
Reducer System PHILANDE
Pneumatic Components Japan SMC
Water Chiller Hanli

Core Technology Details

Heavy-Duty Lathed Bed

The bed undergoes an aging treatment at 1600℃ followed by 24 hours of furnace cooling and precise CO2 protection welding. This process ensures long-term stability with zero deformation.

Aerospace-Grade Aluminum Beam

The beam is manufactured from aerospace-grade aluminum, offering high speed, excellent dynamic response, and fast acceleration. Finite element analysis optimization ensures high rigidity while remaining lightweight.

OSPRI Laser Cutting Head

A renowned brand in the industry, this head features a dedicated high-precision fiber laser anti-collision design, ensuring both accuracy and efficiency.

Cypcut CNC Control System

Designed specifically for the sheet metal industry, this full-featured open-loop control system provides excellent performance, easy installation, and a complete solution for laser processing.

Maxphotonics Fiber Laser Source

A cost-efficient and stable solution with a lifespan of up to 100,000 hours and free maintenance.

Hanli Water Chiller

Maintains the fiber laser device at optimal temperatures to prevent moisture condensation and protects the laser head lenses and mirrors from heat damage.

Machine Parameters

Parameter ML-S2015 ML-S3015 ML-S4020 ML-S6020
Working Area (L*W) 2000*1500mm 3000*1500mm 4000*2000mm 6000*2000mm
X/Y Positioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm
X/Y Repeat Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max Moving Speed 80m/min 80m/min 80m/min 80m/min
Max Acceleration 1.2G 1.2G 1.2G 1.2G
Max Loading Weight 600kg 800kg 1200kg 1500kg
Power Supply AC380V/50Hz AC380V/50Hz AC380V/50Hz AC380V/50Hz
Laser Power Options 1kW - 20kW 1kW - 20kW 1kW - 20kW 1kW - 20kW

Max Laser Source Cutting Process Parameters (Reference)

Note: Data based on Raytools head (100mm/125mm lens). Actual speeds vary by configuration and environment.

Material Thickness (mm) Gas 1kW Speed (m/min) 1.5kW Speed 2kW Speed 3kW Speed 4kW Speed 6kW Speed
Stainless Steel 1 N2 20~24 28~32 38 50 42~43 70~75
2 N2 5.4 7.5 12 19~20 25~30 -
3 N2 2.2 4 7 11~12 12~15 -
4 N2 1.2 2 4 6.5~7.5 7.5~9 -
5 N2 - 1.1 2 4~5 6~7.5 -
Carbon Steel 1 Air 9~12 27~30 27~30 50 43 70~75
2 Air 6~8 8~10 10~12 13 20 25~30
3 O2 3 3 3 4.5 4.5 4.5
6 O2 1.4 1.8 2.2 2.8 3.3 -
10 O2 0.9 1.1 1 1.8 2.1 -
Aluminum 1 Air 12~13 15 17~18 45 35~37 70~75
2 Air 4~4.5 6 7.5 11 15 25~30
3 Air 1~1.5 3 5 8~9 15 -
Brass 1 Air 10 12 15 40 30~33 65~70
2 Air 3 5 6 10 13 20~25

Working Environment Requirements

To ensure optimal performance and longevity of the ML-S Series, please adhere to the following site requirements:

  1. Humidity: 40%-80% (No condensation).

  2. Power Grid: 380V; 50Hz/60A with max fluctuation of 5%.

  3. Grounding: Resistance ≤ 4 ohms. Ground amplitude < 50um; vibration acceleration < 0.05g.

  4. Gas Supply: Clean, dry compressed air and high-purity O2/N2 (≥ 99.9% purity).

  5. Interference: Avoid installation near strong electromagnetic interference (radio transmitters, relay stations).

  6. Vibration: Avoid placing near heavy stamping machines.

  7. Environment: Smoke-free and dust-free area (avoid metal polishing/grinding nearby).

  8. Flooring: Anti-static floor with shielded cable connection.

  9. Cooling Water: Pure water, deionized water, or distilled water is strictly required.
