ML-HPC High Power Fiber Laser Cutting Machine 6KW~20KW

Custom Product - Contact us for pricing

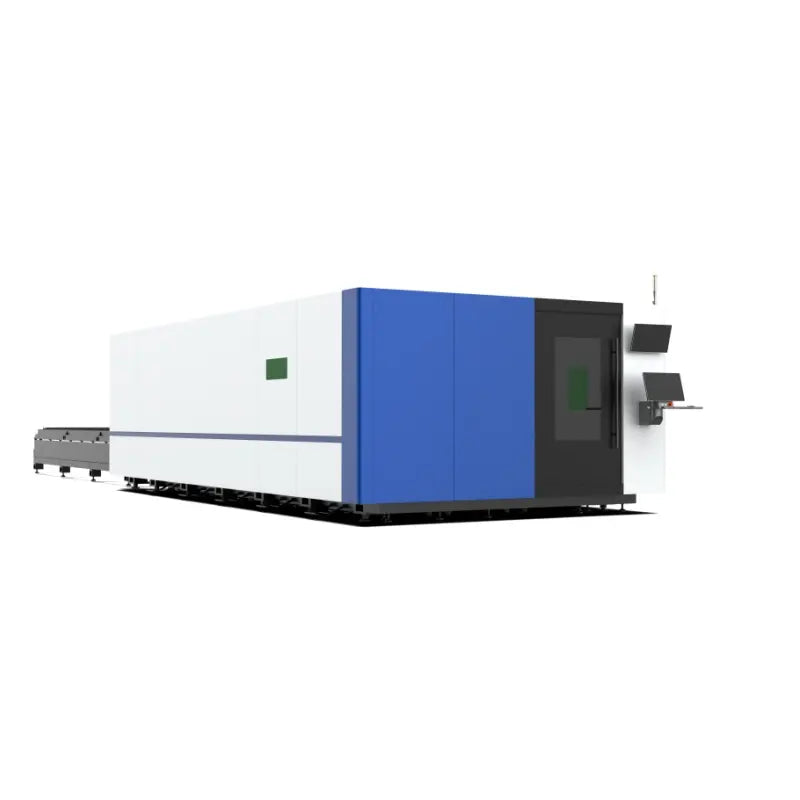

The Manxlaser High-Power Fiber Laser Cutting Machine (6kW-20kW) is engineered for heavy-duty industrial applications. Equipped with a world-leading fiber laser source, this machine delivers powerful energy density to instantly melt and evaporate thick metal plates with unmatched precision. Integrating advanced fiber laser technology, intelligent numerical control, and precision machinery, Manxlaser provides the ultimate solution for high-speed, high-quality metal processing.

Key Features & Advantages

1. World-Class Core Components

• IPG Laser Source: Powered by IPG, the world’s most famous laser source manufacturer. It offers excellent beam quality and powerful cutting capabilities, enabling the cutting of sheet metal up to 80mm thick. It features high electro-optical conversion efficiency, lower power consumption, and minimal maintenance costs.

• Germany Precitec Cutting Head (Procutter 2.0): Features a completely sealed internal structure to prevent dust contamination, ensuring long-term stability. It supports non-inductive perforation, high-speed operation, and auto-focusing for flexible cutting of various materials and thicknesses. The result is a smooth cutting section with small taper, bright surface, and zero burrs.

2. Specialized Machine Structure

• Hollow Plate Welded Heat-Dissipation Bed: Specifically designed for ultra-high power cutting, the bed is constructed from high-strength steel with a hollow cutting area. This design prevents overheating and deformation, providing a strong guarantee for the long-term, continuous batch cutting of medium and thick plates.

• Full Protection Cover: Designed for safety and visibility, the fully enclosed cover features thickened sheet metal and European CE Standard OD4+ protective glass windows. Built-in cameras and an intelligent central control system allow for safe, real-time monitoring of the operation.

3. High-Efficiency Exchange Platform

• Fast Swap (8-15 Seconds): The double-motor, double-chain automatic exchange platform is driven by Yaskawa servo motors. It achieves a stable exchange speed of 8-15 seconds (fastest 10s), significantly increasing productivity.

• Heavy Load Capacity: The welded frame and support grid can bear a load of up to 1000KG. Universal balls surround the worktable to prevent deviation and collision during loading and unloading.

4. Intelligent Control System

• Smart Operation: The powerful control system includes a comprehensive diagnosis function for quick fault finding and a process database for different materials.

• Optimization: Features efficient automatic nesting to save material, contour inspection, and complex graphics repair. The intelligent lifting and "leapfrogging" functions optimize the cutting path, making the machine more flexible and faster.

Technical Parameters
