ML-HPC Fully Enclosed Metal CNC Laser Cutter Machine

ML-HPC Fully Enclosed Metal CNC Laser Cutter Machine

£0.00 GBP
£0.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

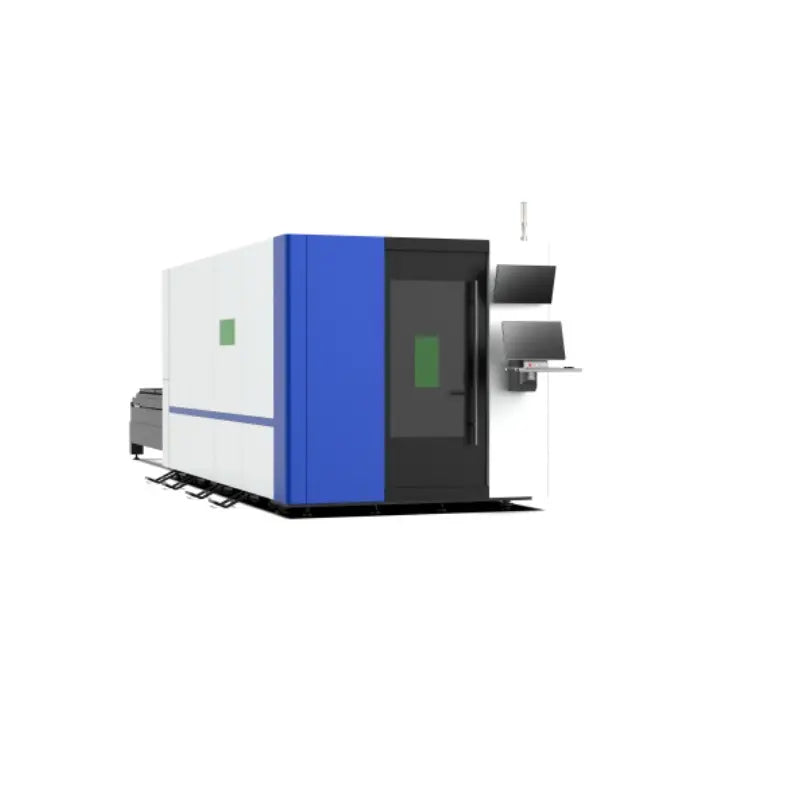

The Manxlaser Fully Enclosed Fiber Laser Cutting Machine (ML-HPC Series) is an industrial-grade solution designed for powerful cutting capability and maximum efficiency. It integrates a fully enclosed safety cover, a high-speed chain exchange platform, and a professional CNC cutting system.

Built using top-tier imported components and subjected to strict assembly processes, the Manxlaser ML-HPC Series ensures safe, stable, and high-precision operation for demanding production environments.

(Note: The ML-HPC Series is available with or without the exchange platform based on your requirements.)

Key Features & Technology

1. Fully Enclosed Protective Cover & Monitoring

  • Integrated Control: Features a large screen interface that combines monitoring and operation for an ultimate user experience.

  • Real-Time Monitoring: The protective cover includes a built-in high-definition camera, allowing operators to safely observe the cutting process in real-time without stopping the machine or opening the doors.

2. Professional Auto-Focus Laser Head

  • Intelligent Focus: The laser head automatically adjusts the focus, eliminating the need for manual intervention.

  • Adaptive Optics: The software automatically and quickly changes focusing lenses to suit different plate thicknesses, making operations simple, fast, and accurate.

3. Aviation-Grade Cast Aluminum Beam

  • Low-Pressure Casting: Manufactured using a low-pressure steel film casting process, the beam offers high compactness and a smooth surface quality.

  • High Performance: It combines excellent integrity and rigidity with toughness and ductility.

  • Efficiency: The lightweight design reduces servo motor load and inertia, saving electricity while significantly improving the equipment's operating speed.

4. Cypcut CNC Control System

  • Industry Standard: The Cypcut controller is a full-featured open-loop control system designed specifically for the sheet metal processing industry.

  • User-Friendly: Easy to install and adjust, it provides excellent performance and complete, robust solutions for laser cutting.

Machine Characteristics

  • Servo Dual-Drive Gantry Structure: Utilizes a bridge gantry structure with rack rail drive and a centralized lubrication device for easy maintenance.

  • Superior Stability: The reinforced welding bed undergoes high-temperature tempering and vibration aging treatment to eliminate stress, controlling machine tool deformation to within ± 0.02mm.

  • Industrial Aesthetic Design: Designed to meet European and American export standards, featuring a sleek, modern appearance.

  • Proven Reliability: Trusted by over 20,000 users globally. The system allows flexible operation with laser power adjustment to ensure optimal cutting quality.

  • High-Quality Cutting: Equipped with a high-precision, anti-collision professional laser head to ensure the best edge results.

Technical Specifications

Parameter ML-HPC2015 ML-HPC3015 ML-HPC4020 ML-HPC6020
Working Area (L*W) 2000 x 1500 mm 3000 x 1500 mm 4000 x 2000 mm 6000 x 2000 mm
Laser Power (Optional) 1kW - 20kW 1kW - 20kW 1kW - 20kW 1kW - 20kW
X/Y Positioning Accuracy ±0.03mm / 1000mm ±0.03mm / 1000mm ±0.03mm / 1000mm ±0.03mm / 1000mm
X/Y Repeat Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max Moving Speed 80,000 mm/min 80,000 mm/min 80,000 mm/min 80,000 mm/min
Max Acceleration 1.2G 1.2G 1.2G 1.2G
Machine Dimensions 6.5m x 1.8m x 2.1m 8.5m x 2.6m x 2.1m 10.5m x 3.0m x 2.1m 16.0m x 3.0m x 2.1m
Max Loading Weight N/A 600 kg 600 kg N/A
Machine Weight N/A 2000 kg 4500 kg N/A

Power Options Available: 1kW, 1.5kW, 2kW, 2.5kW, 3kW, 4kW, 6kW, 8kW, 10kW, 12kW, 15kW, 20kW.

Applications

The Manxlaser ML-HPC Series is suitable for high-speed processing of various metal sheets, including:

  • Stainless Steel

  • Carbon Steel

  • Alloy Steel

  • Silicon Steel

  • Galvanized Steel Plate

  • Nickel-Titanium Alloy

  • Inconel

  • Titanium Alloy
