ML-ATC Automatic Feeding Laser Tube Cutting Machine

ML-ATC Automatic Feeding Laser Tube Cutting Machine

£0.00 GBP
£0.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

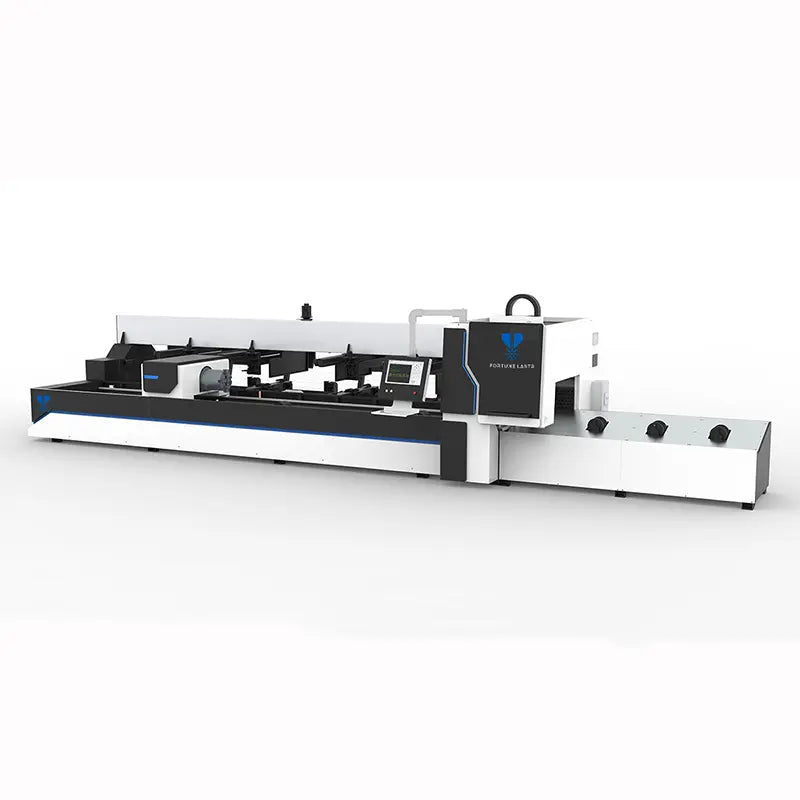

The Manxlaser Automatic Feeding Laser Tube Cutting Machine is a premier cutting solution designed for high reliability, precision, and speed. Integrating advanced computer control, precision mechanical transmission, and thermal cutting technology, this machine is engineered to maximize productivity.

Featuring a modular one-piece design, the machine is easy to install and transport. The intuitive, user-friendly Human-Machine Interface (HMI) ensures operation is convenient and simple, allowing operators to cut various profiles quickly and accurately with minimal training.

Key Features & Advantages

1. Intelligent Automatic Feeding System

  • Labor Saving: Designed to drastically reduce labor costs and manual handling.

  • Smart Separation: Once bundles of tubes are placed in the loading device, the system intelligently separates, feeds, and seamlessly docks them with the fiber laser cutter.

  • Precision Delivery: Ensures that only one tube is delivered to the conveying arm at a time for uninterrupted processing.

2. Professional Double Pneumatic Chucks

  • High Efficiency: Features one-click clamping with automatic centering. It operates 3 times faster than standard electric chucks.

  • High Precision: Delivers large, constant clamping force to ensure no tube loosening, guaranteeing cutting accuracy.

  • High Stability: Specialized tube support prevents sagging and deformation, ensuring durability and precision during heavy operations.

3. Specialized Tube Cutting Laser Head

  • Smart Design: A tapered, pointed nozzle design prevents collisions when cutting sharp or irregular tubes.

  • Enhanced Protection: Equipped with new collimation and protection lenses to safeguard core components.

  • Auto-Focus: Reduces human intervention and significantly improves piercing and cutting speeds.

  • Dust Proof: Rated IP65 with a patented cover glass plate for all-around dust prevention.

4. Advanced Tube Cutting System

  • Core Technology: Features real-time core deviation compensation and high-precision perforation.

  • Advanced Crafting: Supports individual corner crafting settings and advanced technologies such as cooling points, sharp corner ring cutting, and corner release.

Machine Capabilities

  • Versatile Processing: Capable of cutting a wide range of shapes including I-beams, channel steel, angle steel, elliptical pipes, waist (obround) pipes, and multi-deformed pipes.

    • Round Tube: ϕ20 mm – ϕ220 mm

    • Square Tube: 20x20mm – 150x150mm

  • Top-Tier Components: Powered by a top-brand Fiber Laser source for stable, reliable performance.

  • Automated Workflow: The FL-AT Series comes standard with an automatic loading and unloading system to maximize throughput.

Technical Specifications

Parameter ML-ATC4020 ML-ATC6020
Laser Source Power (Optional) 1kW / 1.5kW / 2kW / 3kW / 4kW / 6kW 1kW / 1.5kW / 2kW / 3kW / 4kW / 6kW
Effective Tube Cutting Length 4000 mm 6000 mm
Round Tube Cutting Range Diameter 15mm - 220mm Diameter 15mm - 220mm
Max. Effective Cutting Thickness ≤14 mm ≤14 mm
X/Y/Z Axis Stroke X: 400mm, Y: 9200mm, Z: 300mm X: 400mm, Y: 9200mm, Z: 300mm
Workbench Axial Positioning Accuracy ≤0.05 mm/1000 mm ≤0.05 mm/1000 mm
Workbench Repeat Positioning Accuracy ≤0.03 mm ≤0.03 mm
Chuck Load Capacity

Total: 600kg


(<200kg runs at full speed; >200kg runs at reduced speed; 600kg runs at 30%-50% speed)

Total: 600kg


(<200kg runs at full speed; >200kg runs at reduced speed; 600kg runs at 30%-50% speed)
Machine Dimensions (L x W x H) 15m x 2m x 2.5m 15m x 2m x 2.5m

Applications

The Manxlaser Automatic Feeding Tube Cutter is designed to satisfy diverse industrial needs. It is ideal for:

  • Materials: Round pipes, square pipes, oval pipes, and special-shaped profiles.

  • Processes: Slope cutting, bevel cutting, hole cutting, letter/pattern engraving, and truncation.

  • Industries: Suitable for lampshade manufacturing, structural steel processing, furniture making, and general metal fabrication.
